Below is a graph showing the standard deviation (in cents) from the ratios in the euler genus lattice with the arbitrarily chosen boundaries 3(0...+8) * 5(0...+4), for all EDOs from 45 to 750. The best EDO representations of this 5-limit lattice are labeled: 53-, 65-, 118-, 183-, and 612-edo.


Below are lattice diagrams showing the amount of error of various EDOs from 5- (and in some cases 7- and 11-)limit JI, in which I've used greyscale to show the amount of error from the just ratio.

Prime-factor 3 is along the horizontal axis, and prime-factor 5 is along the vertical. In those cases where I illustrate lattices for prime-factors higher than 5, the format resembles the old method I used to use (as in several lattices in my book) wherein prime-factors 3 and 5 form a grid, which is then replicated for various exponents of the other primes, somewhat like a ladder.

The numbers in the central cells show the degree of the EDO which most closely approximates the ratio, and is given to one decimal place. The actual EDO degree is the integer part of that value, and the amount of error is given here to one decimal point as 1/10 of a degree in that EDO.

I deliberately give the error in terms of EDO degrees rather than in a typical reference measurement such as cents, so as to use a perspective which emphasizes the qualities of the particular EDO, in an attempt to quantify Ivor Darreg's postulate that each EDO has its own mood (see Darreg 1986, New Moods).

If the decimal part is zero, the cell is white. If the decimal part is .1 or .9, the cell is the lightest shade of grey. If the decimal part is .2 or .8, the cell is the next darker shade of grey; .3 or .7, the next darker shade of grey; .4 or .6, the darkest shade of grey, and if it is .5, the cell is black since that ratio can be equally well approximated by the EDO degree on either side of that value. Here is the legend, with error given as a fraction of an EDO degree:

The patterns of shade shown on these lattices show interesting correspondences with other lattices I've made. See, for instance, my webpage Lattice diagrams comparing rational implications of various meantone chains, and compare the 19edo lattice here with the 1/3-comma meantone lattice on that page; compare 43edo here with 1/5-comma there, and 12edo here with 1/11-comma there.

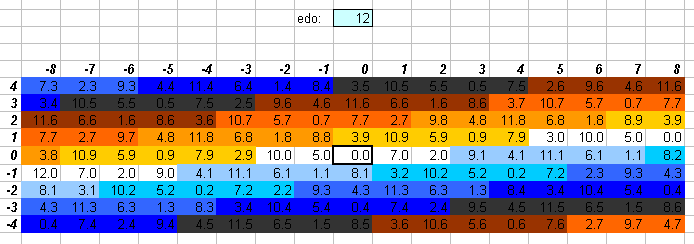

For some EDOs I also give a color lattice to show whether the tempering of a particular interval is positive or negative. This may show that certain pairs of temperaments which look very similar on the greyscale lattice are actually "opposites" in a sense, because one is a positive system and the other a negative. (Example 1: the diagram of 22edo resembles that of 43edo, but they are in fact very different tunings, because 22 is positive and 43 is negative; example 2: 19 and 34 look similar, but 19 is negative and 34 is positive.) I used shades of blue to represent pitches which the EDO gives as too flat (negative tempering), and shades of orange to represent EDO pitches which are too sharp (positive tempering), and dark grey for those JI pitches which fall right between two of the EDO degrees. Here is the legend, with error given as a fraction of an EDO degree:

[Note: Herman Miller's Warped Canon page has MIDI versions of Pachelbel's Canon in most of the tunings listed here, and several others as well.]

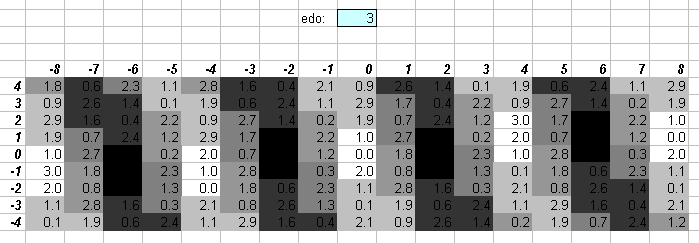

3edo

3edo is the subset of 12edo which forms the "augmented triad".


4edo

4edo is the subset of 12edo which forms the "diminished 7th tetrad".

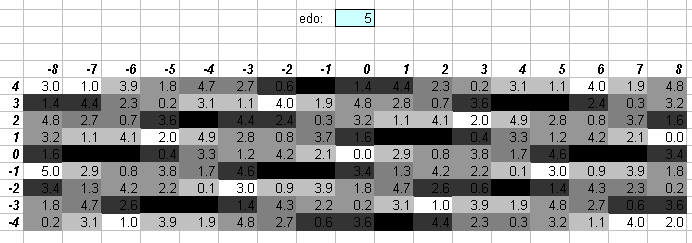

5edo

5edo is the lowest cardinality EDO which provides something recognizable as a scale. In this case, it is a form of the pentatonic scale, but without anything resembling "3rds". One degree of 5edo (exactly 240 cents) is fairly close to 144:125 = [2 3 5]^[4 2 -3] (= ~244.9689 cents).


6edo

The "whole-tone" scale, used prominently around 1900 by Debussy and Schoenberg as a subset of 12edo. One degree of 6edo (exactly 200 cents) is quite close to the Pythagorean "whole-tone" 9:8 = [2 3 5]^[-3 2 0] (= ~203.91 cents).

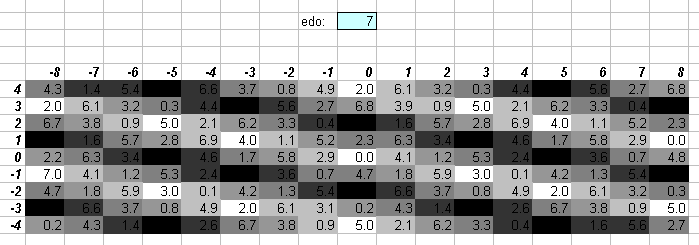

7edo

The closest 7edo approximation to the "perfect 5th" 3:2 is 4 degrees of 7edo. The fact that this is slightly narrower than the 3:2 ratio makes it a negative system, causing it to resemble a meantone generator, and makes 7edo the lowest cardinality EDO which may represent the meantone family of temperaments, except for the fact that the scale produced by 7edo contains "3rds" which are "neutral" (i.e., neither "major" nor "minor").


8edo

Note that 8edo is available as a subset of 72edo.

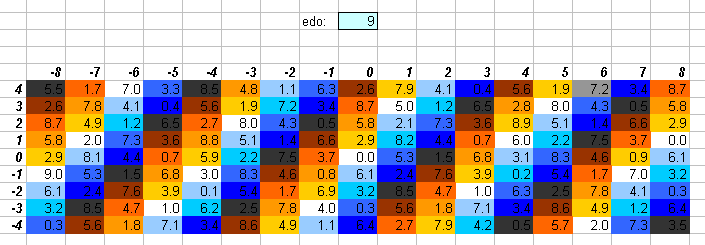

9edo

Note that 9edo is also available as a subset of 72edo. One degree of 9edo (133&1/3 cents) is nearly the same as 27:25 = [2 3 5]^[0 3 -2] (= ~133.2375749 cents).

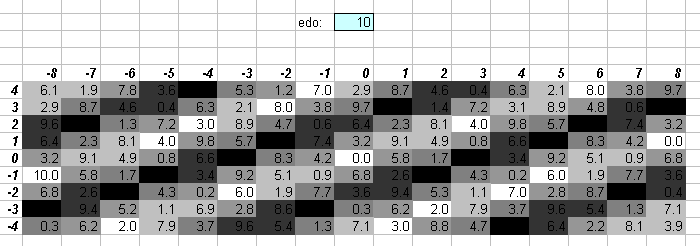

10edo


11edo

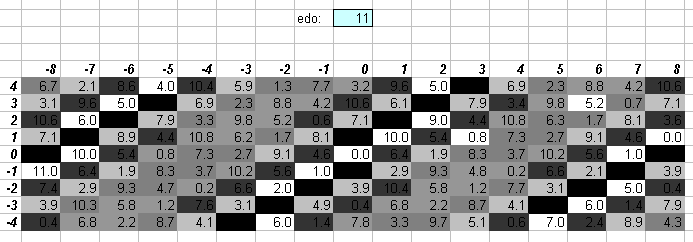

11edo and 13edo sound about as far away from 5-limit JI as any low-cardinality EDO can get. One degree of 11edo (~109.0909 cents) is fairly close to 16:15 = [2 3 5]^[4 -1 -1] (= ~111.7313 cents).


12edo

7 degrees of 12edo (exactly 700 cents) is very close to the Pythagorean "perfect 5th" with ratio 3:2 (= ~701.955 cents), and it can be seen immediately on the greyscale lattice that 12edo approximates Pythagorean (3-limit) quite well, and it is not too bad at approximating 5-limit either. 12edo is the smallest cardinality EDO which can represent the central section of the 5-limit lattice tolerably accurately, as well as the smallest EDO which can produce a recognizably diatonic scale (i.e., having two different-sized steps).

Because of this fair accuracy in the 5-limit, 12edo provides the simplest means of logarithmic interval measurement where one wants to use only integers. Some of the basic JI intervals are listed here -- note that in many cases, several JI ratios are represented by the same 12edo interval.

    12edo prime interval degrees vector ratio name 0 [ 8 1] 32805:32768 skhisma 0 [-4 -2] 2048:2025 diaschisma 0 [ 4 -1] 81:80 syntonic comma 0 [ 0 -3] 125:128 diesis 1 [-1 2] 25:24 JI chromatic semitone 1 [ 3 1] 135:128 Ellis larger limma, Rameau mean semitone 1 [-5 0] 256:243 limma 1 [-1 -1] 16:15 JI diatonic semitone 1 [ 3 -2] 27:25 2 [-2 1] 10:9 minor tone 2 [ 2 0] 9:8 major tone 2 [-2 -2] 256:225 3 [ 1 -1] 6:5 minor 3rd 4 [ 0 1] 5:4 major 3rd 5 [-1 0] 4:3 4th 7 [ 1 0] 3:2 5th

12edo can act simultaneously as 1/11-comma meantone, aristoxenean, schismic, diaschismic, and diesic, and diminished (octatonic), belonging to all of these families of temperaments -- and still others as well (as displayed on the diagram at the top of this page). This helps to explain its broad utility and appeal as a standard tuning.

Paul Erlich comments:

"12edo is [also] diminished/octatonic. this fact is even more important -- it's very important in the music of Mussorgsky, Rimsky-Korsakov, Stravinsky, Bartok, Lizst, Bloch, etc. . . -- and in a sense, romantic-era harmony can be best thought of as the intersection of meantone and diminished approaches -- hence unambiguously implying 12edo."

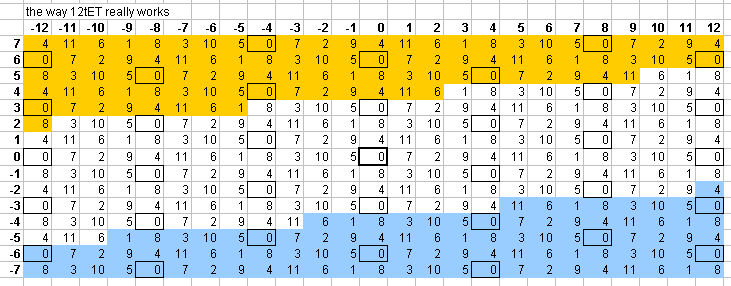

These 5-limit "vanishing commas" in 12edo can be seen on this "bingo-card" lattice:

Here, the point where a 12edo degree is different from the nearest 12edo approximation of the corresponding ratio in the just lattice, is colored yellow where the 12edo note is 1 degree too high, and blue where it is 1 degree too low. The cells shaded in grey or outlined by a black line are all the instances of 2(0/12), which shows immediately which of the commas vanish, as per the graph given above.


Below is the same lattice, this time showing the periodicity of intervals in 12edo by using grey shading according to the legend at the bottom: unison and octave are white, the perfect 4th and perfect 5th are the lightest grey, the major and minor 3rds and 6ths are the next darker shade, the major and minor 2nds and 7ths are the next darker, and the tritone is the darkest.


Because of its easy divisibility, 12edo can also be thought of as 2 bike-chains of 6edo (i.e., 2 distinct "whole-tone" scales) separated by a semitone; as 3 bike-chains of 4edo (i.e., 3 distinct "diminished-7th" tetrads) each separated by a semitone; and as 4 bike-chains of 3edo (i.e., 4 distinct "augmented" triads) each separated by a semitone.

Now, regarding 12edo's representation of higher primes ...

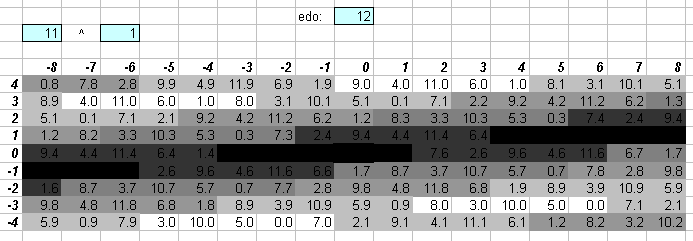

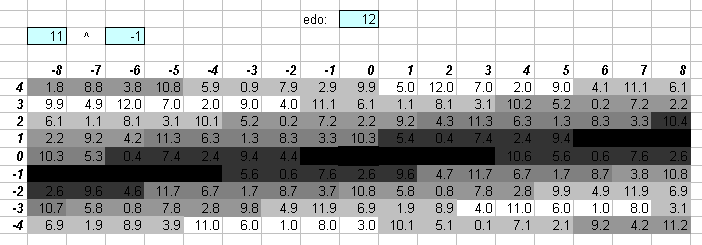

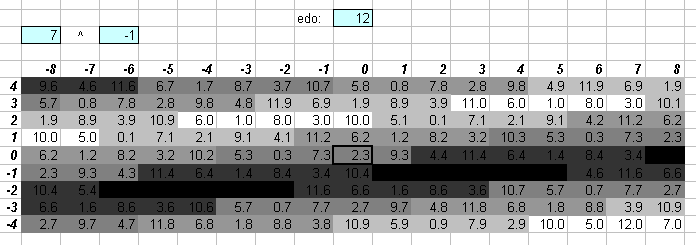

The two greyscale lattices above show that while 12edo is not very good at approximating prime-factor 7, the approximations are still close enough that in a particular musical context it is possible to imply 7 to some extent.

The two greyscale lattices above show that 12edo cannot approximate prime-factor 11 well enough to imply it. The basic 11-limit ratios, 11:8 and 16:11, are both shown as black squares here (at the [3 5]^[0 0] coordinates), indicating that those ratios fall right between two different 12edo degrees.


13edo

13edo and 11edo sound about as far away from 5-limit JI as any low-cardinality EDO can get. One degree of 13edo (~92.30769 cents) is quite close to 256:243 =[2 3 5]^[8 -5 0], the Pythagorean diatonic-semitone or limma (= ~90.225 cents).


15edo


16edo


17edo

17edo is a quasi-Pythagorean tuning. The lattice clearly shows the horizontal orientation typical of a 3-limit system. One degree of 17edo (~70.58824 cents) is nearly identical to 25:24 = [2 3 5]^[-3 -1 2] (= ~70.67243 cents).


19edo

One degree of 19edo (~63.15789 cents) is quite close to 648:625 = [2 3 5]^[3 4 -4] (= ~62.56515 cents). The 19edo error from 5-limit JI follows the same kind of trend on my lattices as 1/3-comma meantone, with which it is audibly nearly identical (compare with this graph). The just "minor 3rds" and "major 6ths" are given nearly exactly. See also 152edo.

The 5-limit "vanishing commas" in 19edo can be seen on this "bingo-card" lattice:

The pattern of accuracy in the 5-limit for 19edo provides a convenient means of logarithmic interval measurement where one wants to use only integers but wants more accuracy than 12edo. Some of the basic JI intervals are listed here:

    19edo prime interval degrees vector ratio name -1 [ 8 1] 32805:32768 skhisma 1 [-4 -2] 2048:2025 diaschisma 0 [ 4 -1] 81:80 syntonic comma 1 [ 0 -3] 125:128 diesis 1 [-1 2] 25:24 JI chromatic semitone 2 [-1 -1] 16:15 JI diatonic semitone 2 [ 3 -2] 27:25 3 [-2 1] 10:9 minor tone 3 [ 2 0] 9:8 major tone 5 [ 1 -1] 6:5 minor 3rd 6 [ 0 1] 5:4 major 3rd 8 [-1 0] 4:3 4th 11 [ 1 0] 3:2 5th

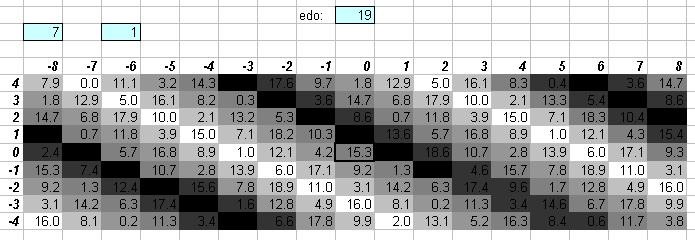

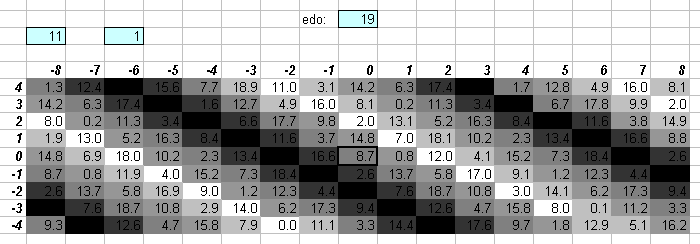

The two lattices above show that 19edo is about as good as 12edo at approximating prime-factor 7, and a good deal better at approximating 11. The "septimal 3rd" with ratio 7/6 is represented by 4 degrees of 19edo, the "harmonic 7th" with ratio of 7/4 by 15 degrees, and the ratio 11/8 by 9 degrees.

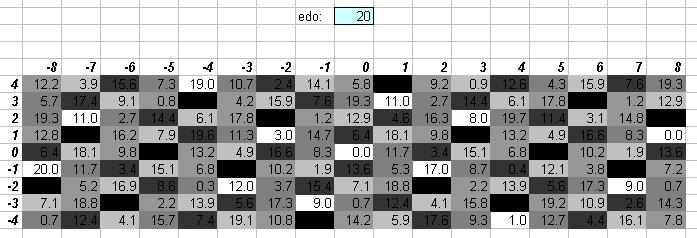

20edo

One degree of 20edo (exactly 60 cents) is also fairly close to 648:625 = [2 3 5]^[3 4 -4] (= ~62.56515 cents).


22edo

The 5-limit "vanishing commas" in 22edo can be seen on this "bingo-card" lattice:

Paul Erlich has recommended 22edo as a new tuning because it gives reasonably good approximations of the higher prime-factors 7 and 11.

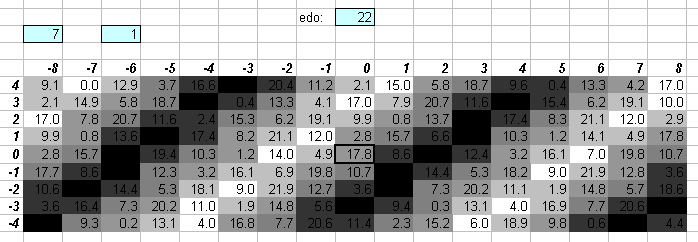

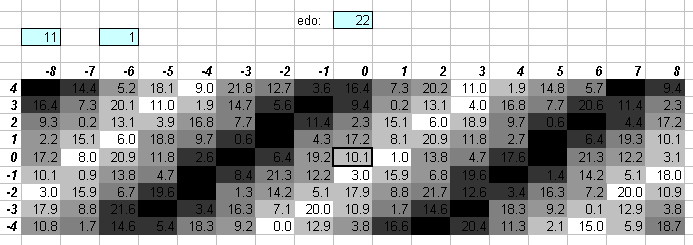

The two lattices above show that, compared to 12edo, 22edo gives a slightly better approximation of 7, and a much better approximation of 11.


23edo

23edo probably has the least to do with 5-limit tuning than any other EDO near its cardinality size. One degree of 23edo is quite close to 16875:16384 = [2 3 5]^[-14 3 5] (= ~51.11986 cents).


24edo

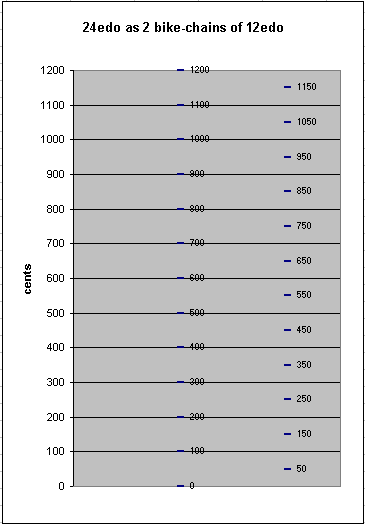

24edo is the system of 1/4-tones. It may be thought of as 2 separate bike-chains of 12edo, each separated by a 1/4-tone.


One degree of 24edo is quite close to 250:243 = [2 3 5]^[1 -5 3] (= ~49.16614 cents).

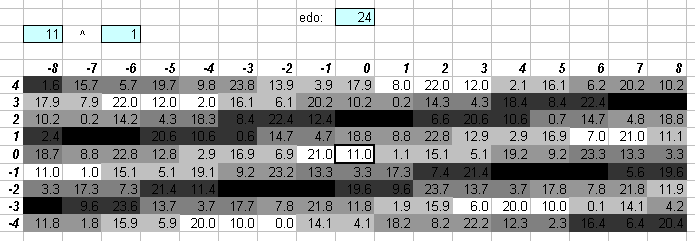

While 24edo gives an approximation of 7 which is better than that of 12edo, it is inconsistent with the approximation given by the sum of 24edo representations of 7-limit intervals: the best 24edo representation of the JI "major 3rd" (ratio 5:4) is 8 degrees of 24edo (= 400 cents), and the best representation of the 7:5 version of the tritone is 12 degrees of 24edo (= 600 cents). In JI, these two intervals add up to a 7:4 ratio, but the best 24edo approximation to the ("8ve"-reduced) 7th harmonic is 19 degrees, and the sum of the two best 24edo approximations to 5:4 and 7:5 is 8 + 12 = 20 degrees.

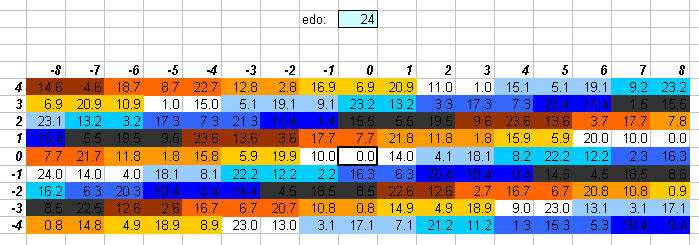

The lattice above shows that 24edo gives excellent approximations of prime-factor 11. Thus, if 7 is excluded, 24edo may be used to represent a [3 5 11] 11-limit JI tuning.


29edo

29edo is a variety of Pythagorean tuning and may also function as a schismic temperament.


31edo

31edo is quite close to 1/4-comma meantone, and nearly exactly 7/29-comma and 13/54-comma meantone. It is easy to see that this lattice is much more vertically-oriented than any of the others so far (except for 3edo and 6edo, which are not large enough to create recognizable diatonicity), which shows that 31edo is very good at approximating prime-factor 5 (compare with this graph). When the term "1/5-tone" is used in tuning literature, it generally refers to one degree not of 30edo but of 31edo.

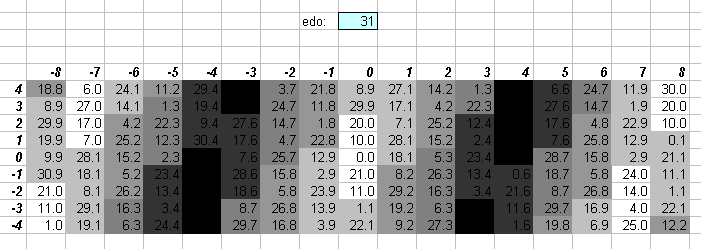

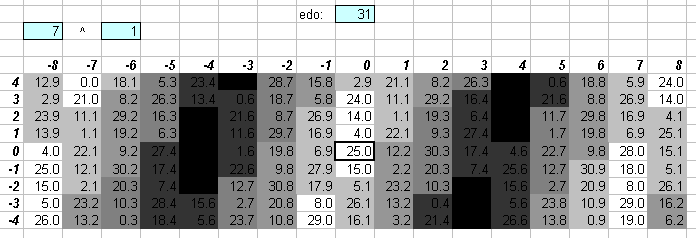

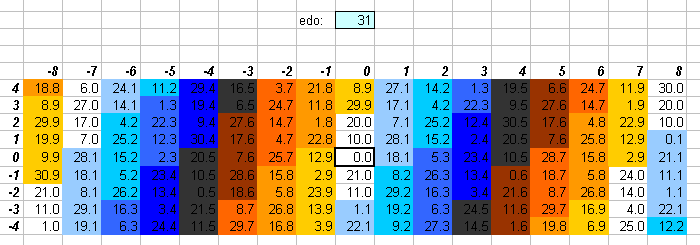

The lattice above shows that 31edo gives a superb rendering of 7-limit harmony. Assuming 1/4-comma meantone or its equivalent 31edo as the tuning, music of the Renaissance, Baroque, and Classical and Romantic periods often suggests 7-limit intervals, with 7:4 generally notated as the "augmented-6th" interval, the 4:5:7 triad as the "Italian 6th" chord, and the 4:5:6:7 tetrad as the "German 6th" chord.

The lattice above shows that 31edo also gives a fairly decent approximation of prime-factor 11.

The 5-limit "vanishing commas" in 31edo can be seen on this "bingo-card" lattice:

Some of the basic JI intervals are listed here with their 31edo representations:

    31edo prime interval degrees vector ratio name 3 5 -1 [ 8 1] 32805:32768 skhisma 1 [-4 -2] 2048:2025 diaschisma 0 [ 4 -1] 81:80 syntonic comma 1 [ 0 -3] 128:125 diesis 2 [-1 2] 25:24 JI chromatic semitone 2 [ 3 1] 135:128 Ellis larger limma, Rameau mean semitone 3 [-5 0] 256:243 limma 3 [-1 -1] 16:15 JI diatonic semitone 3 [ 3 -2] 27:25 5 [-2 1] 10:9 minor tone \ 5 [ 2 0] 9:8 major tone / conflated into one "mean-tone" 6 [-2 -2] 256:225 8 [ 1 -1] 6:5 minor 3rd 10 [ 0 1] 5:4 major 3rd 13 [-1 0] 4:3 4th 18 [ 1 0] 3:2 5th

The "septimal 3rd" with ratio 7/6 is represented by 7 degrees of 31edo, the "harmonic 7th" with ratio of 7/4 by 25 degrees (same as the augmented-6th), and the ratio 11/8 by 14 degrees.


33edo

33edo is at the bottom limit of meantone-like systems, because its "whole-tone" (5 degrees of 33edo = ~181.8182 cents) is very close to the 10:9 ratio (= ~182.4037 cents), which means that it is tempered a full syntonic comma lower than the Pythagorean "whole-tone" 9:8, thus leaving no more room for a "mean" tone between the two different just versions. 33edo is equivalent to 1/2-comma meantone.


34edo

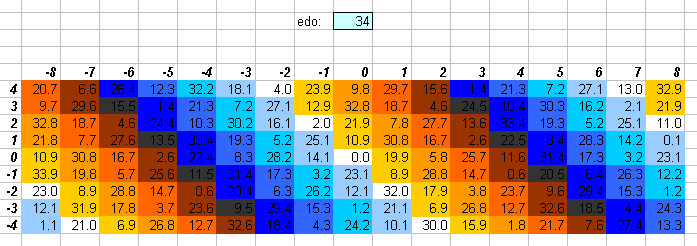

34edo is a positive system which gives good 5-limit approximations.


36edo

36edo is the system of 1/6-tones. It may be thought of as 3 separate bike-chains of 12edo, each separated by a 1/6-tone.

36edo was advocated by Busoni in 1906 in his Sketch of a New Aesthetic of Music, not with the intention of obtaining better approximations of 5-limit tuning (which the lattice shows it does not do well), but rather with the express intention of expanding the composer's palette of pitch resources. Busoni's conception of 36edo was as 2 bike-chains of 18edo, each separated by a semitone. This made his idea for notating it a bit unweildy -- it would have been better to think of the chains as being separated by a 1/6-tone.


36edo gives a good approximation of prime-factor 7,and is also consistent in the 7-limit.

The lattice above shows that 36edo does not really offer an improvement in approximating prime-factor 11, since the 11:8 ratio (represented by the black square at the [3 5]^[0 0] coordinate above) falls directly between two different 36edo degrees.


41edo

41edo provides an excellent approximation to Pythagorean tuning: 24 degrees of 41edo (~702.439 cents) is quite close to the Pythagorean "perfect 5th" 3:2 = [2 3 5]^[-1 1 0] (~701.955 cents). The lattice shows that the error is no more than 1/10 of a 41edo degree for the entire Pythagorean axis 3(-8...8) on this diagram. 41edo is also good enough at approximating the most basic 5-limit ratios that it has some utility in representing 5-limit tuning as well, and it may also function as a schismic temperament.

The 5-limit "vanishing commas" in 41edo can be seen on this "bingo-card" lattice:

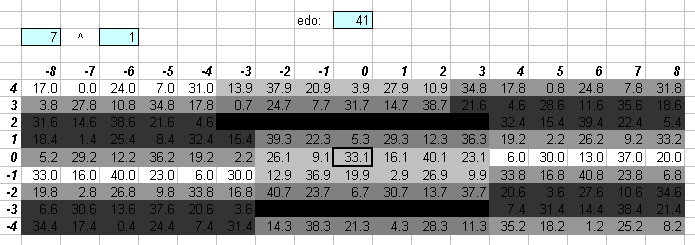

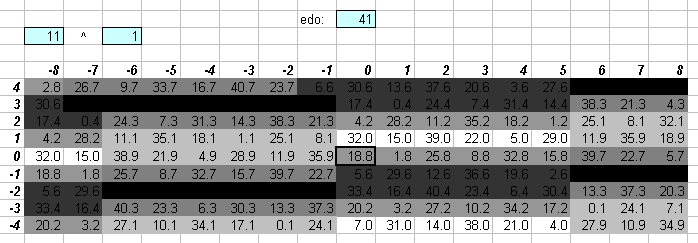

41edo is also quite good in both the 7-limit and (just a bit less so) 11-limit:

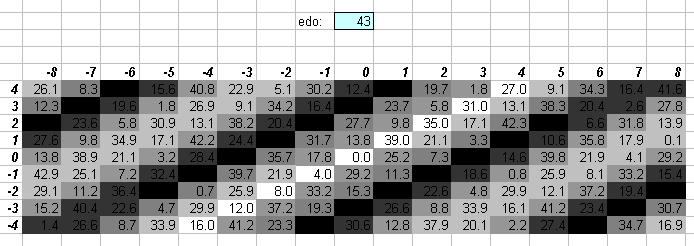

43edo

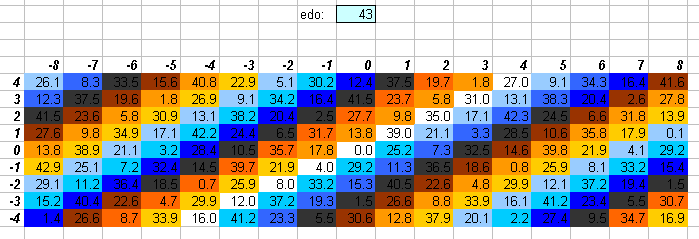

43edo is nearly identical to 1/5-comma meantone (compare with this graph). One degree of 43edo is the unit of interval measurement called a meride, used by Joseph Saveur. 43edo is related to 301edo.


46edo

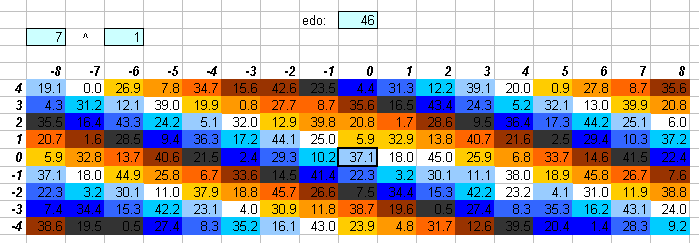

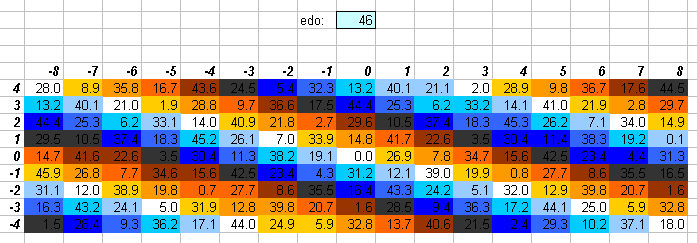

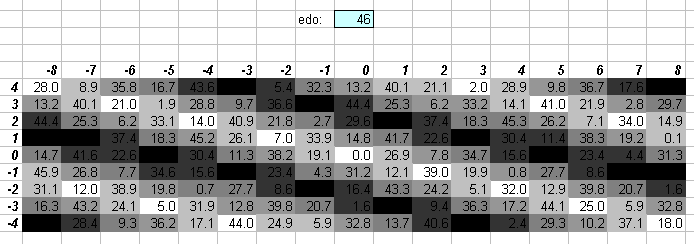

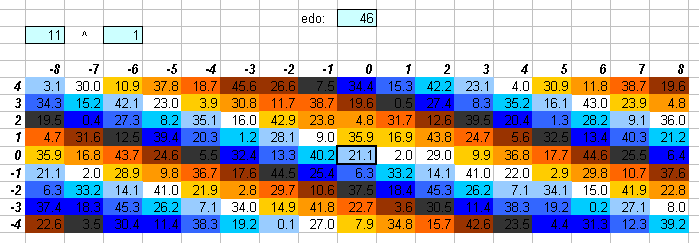

These lattices show that 46edo gives an excellent approximation to all the basic intervals ("5th", "major-3rd", "minor-3rd", "harmonic-7th", "harmonic-11th") in the 11-limit.


48edo

48edo is the system of 1/8-tones. It may be thought of as 4 separate bike-chains of 12edo, each separated by a 1/8-tone.


50edo

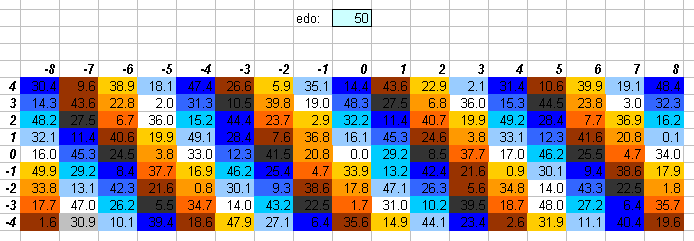

50edo is also a negative system, and it approximates both Zarlino's 2/7-comma meantone and Woolhouse's 7/26-comma meantone well (compare with this graph).


53edo

It can be seen that the error of 53edo on this lattice is nowhere very great, thus, 53edo is a superb approximation to the entire central section of the 5-limit lattice. In addition, note that the error along the entire Pythagorean axis 3(-8...8) is zero, thus 53edo is also the lowest cardinality EDO which is essentially identical to a long enough section of the Pythagorean lattice (chain) to include the Pythagorean comma (~23.46001 cents, which is in fact almost the same as one degree of 53edo = ~22.64151 cents), and is the next closer approximation to Pythagorean after 41edo. In addition to being nearly identical to both Pythagorean and just-intonation tunings, 55edo may also function as a schismic or kleismic temperament.

Because of this accuracy in the 5-limit, 53edo provides a convenient means of logarithmic interval measurement where one wants to use only integers. Some of the basic JI intervals are listed here:

    53edo prime interval degrees vector ratio name 3 5 0 [ 8 1] 32805:32768 skhisma 1 [-4 -2] 2048:2025 diaschisma 1 [ 4 -1] 81:80 syntonic comma 2 [ 0 -3] 128:125 diesis 3 [-1 2] 25:24 JI chromatic semitone 4 [ 3 1] 135:128 Ellis larger limma, Rameau mean semitone 4 [-5 0] 256:243 limma 5 [-1 -1] 16:15 JI diatonic semitone 6 [ 3 -2] 27:25 8 [-2 1] 10:9 minor tone 9 [ 2 0] 9:8 major tone 10 [-2 -2] 256:225 14 [ 1 -1] 6:5 minor 3rd 17 [ 0 1] 5:4 major 3rd 22 [-1 0] 4:3 4th 31 [ 1 0] 3:2 5th

Larger EDOs which offer increasing accuracy in the 5-limit, and thus make better interval measurements, are 65edo, 118edo, 612edo, 730edo, and 4296edo.


55edo

55edo is close to 1/6-comma meantone, and nearly identical to 3/17-comma meantone (compare with this graph). Note that one degree of 55edo (= ~219/11 cents), is nearly the same as the syntonic comma (= ~211/2 cents).

See my webpage on 55edo.

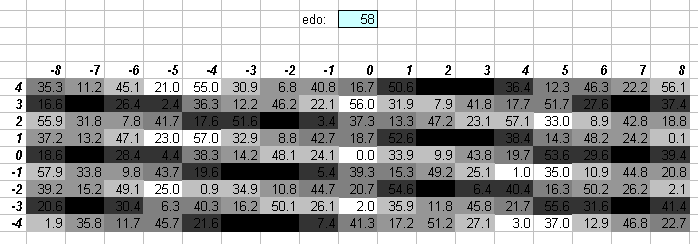

58edo

58edo can be thought of as 2 bike-chains of 29edo.


65edo

65edo provides an excellent approximation to the 5-limit lattice.

Because of this accuracy in the 5-limit, 65edo provides a excellent means of logarithmic interval measurement where one wants to use only integers. Some of the basic JI intervals are listed here:

    65edo prime interval degrees vector ratio name 3 5 0 [ 8 1] 32805:32768 skhisma 1 [-4 -2] 2048:2025 diaschisma 1 [ 4 -1] 81:80 syntonic comma 2 [ 0 -3] 128:125 diesis 4 [-1 2] 25:24 JI chromatic semitone 5 [ 3 1] 135:128 Ellis larger limma, Rameau mean semitone 5 [-5 0] 256:243 limma 6 [-1 -1] 16:15 JI diatonic semitone 7 [ 3 -2] 27:25 10 [-2 1] 10:9 minor tone 11 [ 2 0] 9:8 major tone 17 [-2 -2] 256:225 17 [ 1 -1] 6:5 minor 3rd 21 [ 0 1] 5:4 major 3rd 27 [-1 0] 4:3 4th 38 [ 1 0] 3:2 5th


72edo

The 5-limit "vanishing commas" in 72edo can be seen on this "bingo-card" lattice:

Because of its acceptance by many microtonalists around 2000 as a tuning and/or notation standard, 72edo is one of the more important of the tunings described on this page. Some of the basic JI intervals are listed here:

    72edo prime interval degrees vector ratio name 3 5 -1 [ 8 1] 32805:32768 skhisma 2 [-4 -2] 2048:2025 diaschisma 1 [ 4 -1] 81:80 syntonic comma 3 [ 0 -3] 128:125 diesis 4 [-1 2] 25:24 JI chromatic semitone 5 [ 3 1] 135:128 Ellis larger limma, Rameau mean semitone 6 [-5 0] 256:243 limma 7 [-1 -1] 16:15 JI diatonic semitone 8 [ 3 -2] 27:25 11 [-2 1] 10:9 minor tone 12 [ 2 0] 9:8 major tone 14 [-2 -2] 256:225 19 [ 1 -1] 6:5 minor 3rd 23 [ 0 1] 5:4 major 3rd 30 [-1 0] 4:3 4th 42 [ 1 0] 3:2 5th

Scales which have cardinalities which are multiples of 12 (24, 36, 48) have often been recommended as a means of expanding the composer's pitch resources. 72edo is the first scale which is a multiple of 12edo, to offer a better approximation of prime-factor 5 than 12edo. 72edo may be thought of as 6 separate bike-chains of 12edo, each separated by a 1/12-tone.

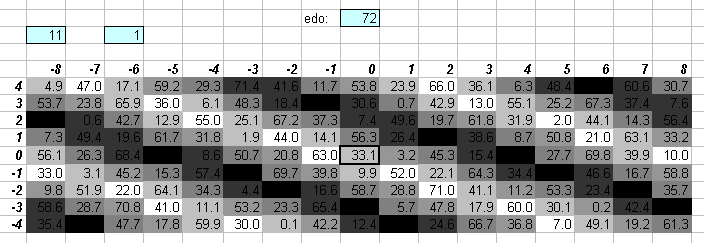

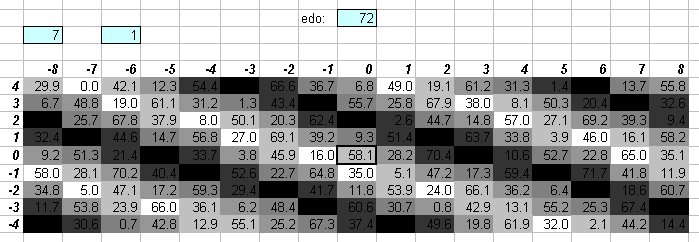

The two lattices above show the good approximations to 7- and 11-limit ratios given by 72edo, and that it is about equally good at approximating all prime-factors within the 11-limit.


84edo

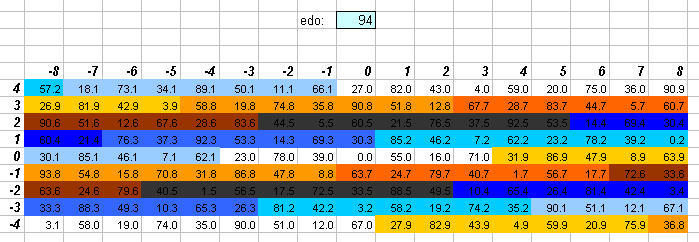

94edo


111edo


118edo

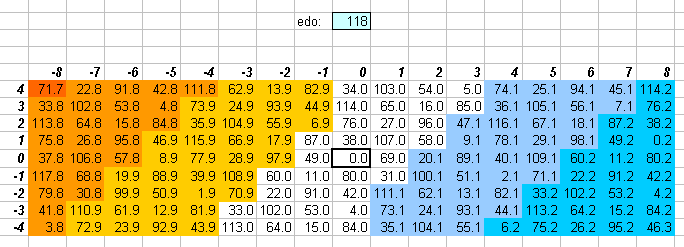

The lattice shows clearly that 118edo gives an outstanding approximation to 5-limit JI. The entire central core is given with practically no error. This makes 118edo quite good as an interger interval measurement for the 5-limit.

Because of this accuracy in the 5-limit, 118edo provides a excellent means of logarithmic interval measurement where one wants to use only integers. Some of the basic JI intervals are listed here:

    118edo prime interval degrees vector ratio name 3 5 0 [ 8 1] 32805:32768 skhisma 2 [-4 -2] 2048:2025 diaschisma 2 [ 4 -1] 81:80 syntonic comma 4 [ 0 -3] 128:125 diesis 7 [-1 2] 25:24 JI chromatic semitone 9 [ 3 1] 135:128 Ellis larger limma, Rameau mean semitone 9 [-5 0] 256:243 limma 11 [-1 -1] 16:15 JI diatonic semitone 13 [ 3 -2] 27:25 18 [-2 1] 10:9 minor tone 20 [ 2 0] 9:8 major tone 22 [-2 -2] 256:225 31 [ 1 -1] 6:5 minor 3rd 38 [ 0 1] 5:4 major 3rd 49 [-1 0] 4:3 4th 69 [ 1 0] 3:2 5th 118edo vector degree cents 3 5 name 0 0 [ 0 0] prime [-2 -15] ? [ 8 1] skhisma [ 6 -14] ? 1 10 10/59 [-5 6] kleisma [ 3 7] semicomma [ 1 -8] Wurschmidt's comma 2 20 20/59 [-4 -2] diaschisma [ 4 -1] syntonic comma [12 0] Pythagorean comma 3 30 30/59 [-9 4] minimal diesis [-1 5] small diesis (magic comma) [ 7 6] ampersand's comma 4 40 40/59 [ 0 -3] diesis [ 8 -2] superdiesis 5 50 50/59 [ 3 4] [-5 3] porcupine 6 61 1/59 [-4 -5] [ 4 -4] major diesis (diminished scale) 7 71 11/59 [-1 2] JI chromatic semitone 8 81 21/59 [ 0 -6] 9 91 31/59 [-5 0] Pythagorean limma [ 3 1] JI larger limma 10 101 41/59 [-2 7] 11 111 51/59 [-1 -1] JI diatonic semitone 12 122 2/59 [ 2 6] 13 132 12/59 [ 3 -2] great limma 14 142 22/59 [-2 4] 15 152 32/59 [-1 -4] 16 162 42/59 [ 2 3] 17 172 52/59 [ 3 -5] 18 183 3/59 [-2 1] JI minor-tone 19 193 13/59 [-1 -7] 20 203 23/59 [ 2 0] Pythagorean major-tone 21 213 33/59 [-3 6] 22 223 43/59 [-2 -2] JI diminished-3rd 23 233 53/59 [ 1 5] 24 244 4/59 [ 2 -3] acute diminished-3rd 25 254 14/59 [-3 3] grave augmented-2nd 26 264 24/59 [-2 -5] 27 274 34/59 [ 1 2] augmented-2nd 28 284 44/59 [ 2 -6] 29 294 54/59 [-3 0] Pythagorean minor-3rd (trihemitone) 30 305 5/59 [ 0 7] 31 315 15/59 [ 1 -1] JI minor-3rd 32 325 25/59 [-4 5] 33 335 35/59 [-3 -3] 34 345 45/59 [ 0 4] 35 355 55/59 [ 1 -4] 36 366 6/59 [-4 2] 37 376 16/59 [-3 -6] 38 386 26/59 [ 0 1] JI major-3rd [-8 0] Pythagorean diminished-4th 39 396 36/59 [ 1 -7] 40 406 46/59 [ 4 0] Pythagorean major-3rd (ditone) 41 416 56/59 [-1 6] 42 427 7/59 [ 0 -2] JI diminished-4th 43 437 17/59 [ 3 5] 44 447 27/59 [ 4 -3] 45 457 37/59 [ 1 3] superfluous 3rd 46 467 47/59 [ 0 -5] 47 477 57/59 [ 3 2] grave 4th 48 488 8/59 [ 4 -6] 49 498 18/59 [-1 0] perfect-4th 50 508 28/59 [ 2 7] 51 518 38/59 [ 3 -1] acute 4th 52 528 48/59 [-2 5] 53 538 58/59 [-1 -3] 54 549 9/59 [ 2 4] 55 559 19/59 [ 3 -4] 56 569 29/59 [-2 2] superfluous 4th 57 579 39/59 [-1 -6] 58 589 49/59 [ 2 1] JI augmented-4th (tritone) 59 600 [-3 7] [ 3 -7]

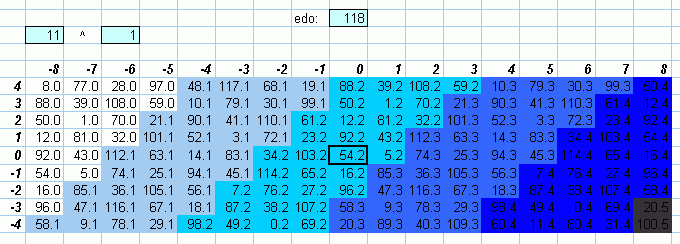

The above lattices show that 118edo, while still not bad, is not quite as good as an integer interval measurement for the 7- and 11-limit as it is for the 5-limit.


144edo

144edo was recommended for use by Joseph Schillinger, and more recently Dan Stearns and I have used it as a notation to represent very complex combinations of various tuning systems being used in the same piece, Stearns for the combinations of different EDOs, and myself for combinations of 12edo and extended JI (as in my piece A Noiseless Patient Spider). I stress here that neither of us use 144edo as a tuning, but merely as a notation; see the Encyclopedia entry for 144edo.


152edo

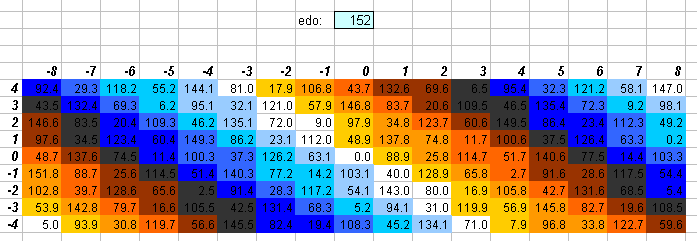

152 = 8 * 19, so 152edo may be thought of as 8 separate bike-chains of 19edo, each separated by a 3/76-tone (~7.894736842 cents).

Actually, the chains can be thought of as being approximately 1/3-comma (= ~7.168763199 cents) apart, so that 152 is a relatively concise fixed tuning that works as an adaptive JI. It also emulates such a wide variety of other tunings that Paul Erlich has proposed it as a "universal tuning":

personally, as i've mentioned before, if i were to choose a large ET for composing, it would be 152-equal (8*19) . . . in addition to supporting a 1/3-comma version of adaptive (5-limit) JI, it's really good through 11-limit strict JI. combine this with the fact that 76- equal (152/2) comes up as 'universally' important in my paper (near the end), and that 152 affords the opportunity to 'adaptively' realize the resources of 76-equal but with far better vertical harmony, and you get an idea of a few of the reasons why i like 152.

[from Yahoo tuning group message 36560, Mon Apr 22, 2002 5:11 pm]


171edo

171edo was recommended by prolific German theorist Martin Vogel, who built a keyboard instrument in this tuning. It can be seen that, for such a large cardinality size, 171edo's approximations to 5-limit ratios, while quite good, do not surpass the accuracy of 118edo; but to be fair, Vogel chose 171edo because his intendion was to have close approximations to 7-limit ratios as well.

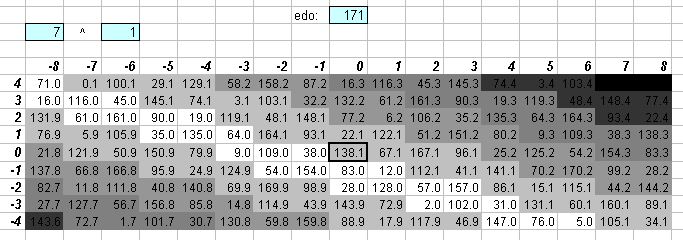

The lattice above shows that 171edo has excellent approximations to prime-factor 7 -- in fact, the pattern given by the amount of error is nearly identical to the 5-limit lattice above.

171edo may be thought of as 9 separate bike-chains of 19edo, each separated by a 2/57-tone.

Curiously, however, as good as 171edo is at approximating 5 and 7, it is conversely just as bad at approximating 11.


183edo

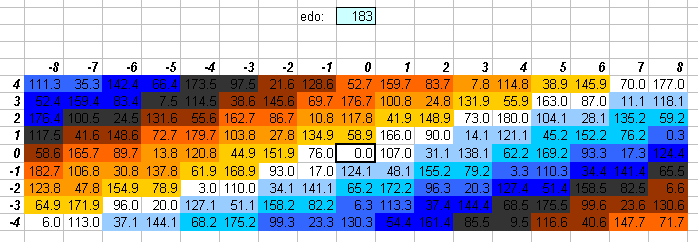

183edo gives a very good approximation to the 5-limit lattice.


217edo

217edo received a lot of attention among tuning theorists in 2002, for its ability to represent a myriad of JI, adaptive-JI, and EDO tunings.

217edo may be thought of as 7 separate bike-chains of 31edo, each separated by a 6/217-tone.

Embedded within it is a very close approximation to Vicentino's "second tuning" of 1555, which combined 1/4-comma meantone with Pythagorean "perfect 5ths".

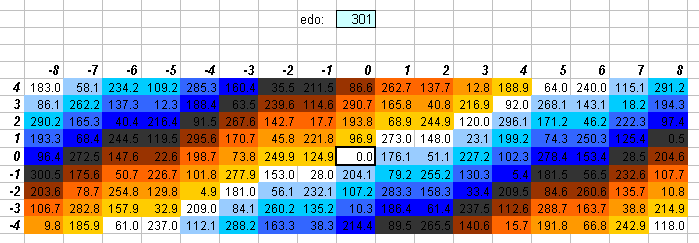

301edo

One degree of 301edo was used as a unit of interval measurement by Joseph Saveur and called a heptameride. 301 was chosen because it is a rounded multiple of log10(2) = ~0.301029996, thus obviating the need to calculate logarithms. It is related to Saveur's unit called meride, which is one degree of 43edo.

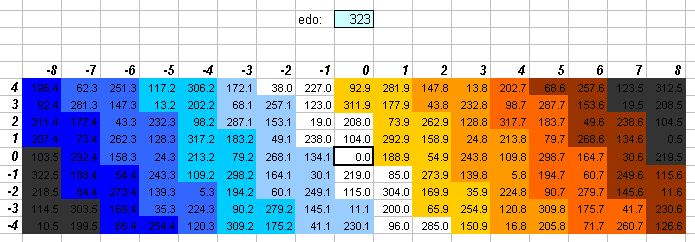

323edo

323edo is a tuning that has been used by Marc Jones. Marc points out that it has four types of "5th" resembling or identical to those of some other tunings:


17edo "5th"      2^(190/323) = 2^(10/17) = ~705.8823529 cents
near just "5th"  2^(189/323)             = ~702.1671827 cents
near-12edo "5th" 2^(188/323)             = ~698.4520124 cents
19edo "5th"      2^(187/323) = 2^(11/19) = ~694.7368421 cents


612edo

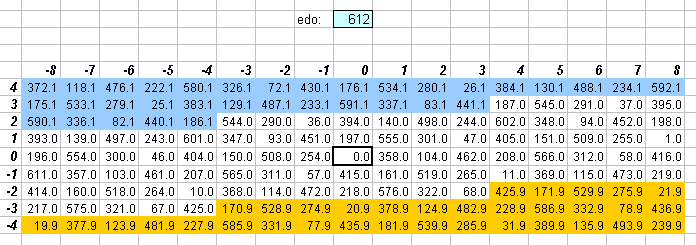

As this lattice shows, 612edo is nearly perfect for use as a 5-limit interval measurement where only integers are used, as there is practically no error for a large central section of the 5-limit lattice. 1 degree of 612edo is nearly identical in size to the skhisma.

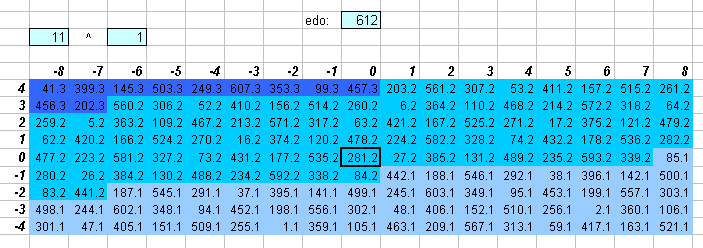

The two lattices above show that 612edo is quite good but not great as an integer interval measurement for 7- and 11-limit harmony.


730edo

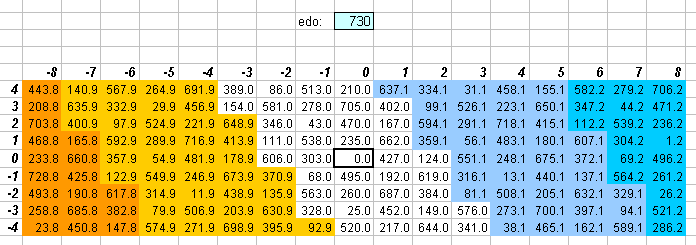

730edo is generated by the interval used as a measurement by Wesley Woolhouse because of its closeness of approximation to the central section of the 5-limit lattice, so that only integers need be employed.

Woolhouse's choice is interesting, because while he stated, in seeking an integer logarithmic interval measurement, that 730edo "differs less than any other from the true series [i.e., the just ratios], unless we ascend to very high numbers; and is the one which is therefore most to be recommended", it can be seen from these diagrams that 612edo actually gives better overall accuracy in the 5-limit. [Paul Erlich comments: "this is not the case. 612 gives better *relative* accuracy, but 730 gives better *absolute* accuracy, which is what woolhouse meant."]

But the pattern of zero error in 730edo resembles the general pattern of 50edo (and to a lesser extent, 19edo) -- which approximates his "optimal" 7/26-comma meantone -- whereas the pattern of 612edo does not. The conclusion this suggests to me is that Woolhouse chose 730edo over 612edo for this reason. The pitches he cared about most, which would follow the diagonal northwest-to-southeast trend of the 50edo lattice, would thus be given logarithmically as integers with excellent accuracy. [More from Paul: "i'm afraid you're stumbling on a mere coincidence -- the choice of 730-equal does not incorporate the major assumption behind his ultimate choice of 50-equal."]

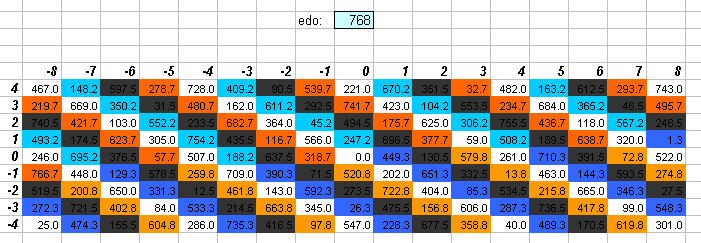

768edo

768edo is the tuning resolution on a variety of different electronic instruments, including the popular Yamaha TX-81Z.

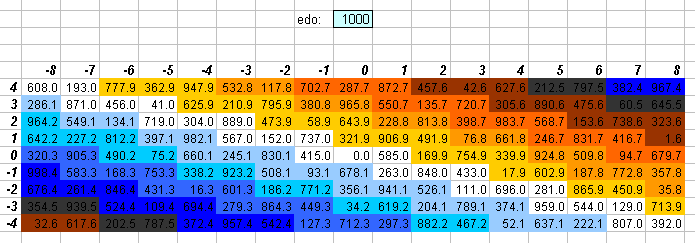

1000edo

One degree of 1000edo is the unit of interval measurement called the millioctave, used prominently by Mark Lindley in Mathematical Models of Musical Scales (1993).


1024edo

1024 edo is the tuning resolution of many popular electronic instruments, including the Yamaha DX, SY and TG series.

Below is a much larger section of the 5-limit lattice, 3^(18...19) * 5^(-17...18). The numbers are too small to read, but more colors can be seen giving a better idea of the overall pattern.


1060edo

1060edo = 20 * 53edo. It is the Turkish analogue of cents; i.e., the small interval used as a basic reference measurement in Turkish music-theory.

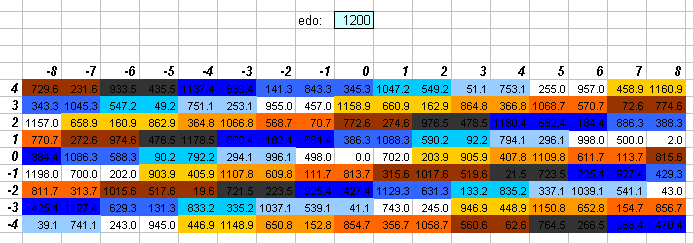

1200edo

1200edo is the unit of interval measurement called cents, established by Alexander Ellis and nearly universally used today. It can be easily seen here that to use only integers, cents, while quite good for Pythagorean intervals, are not as accurate for measuring 5-limit tuning as either 612 or 730edo, or indeed even 118edo. Its adoption was primarily a matter of convenience, because it divides each degree of the standard 12edo scale into 100 units. 1200edo is also the standard measurement used by Johnny Reinhard with his American Festival of Microtonal Music (AFMM) ensemble, to train his performers to be able to handle any microtonal tuning.

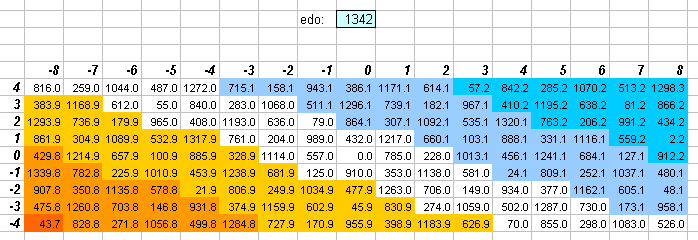

1342edo

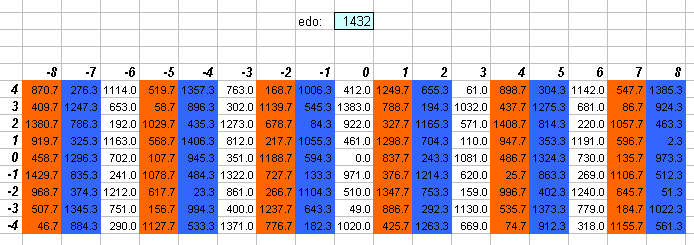

1432edo


4296edo

4296edo results in what is visually a very boring lattice, because it's the magic number which, as Marc Jones discovered, gives a huge central section of the 5-limit lattice -- 3(-20...20) * 5(-9...9) is a representative square chunk -- with practically zero error.

The lattice above is a "zoomed out" view of a huge 3(-32...32) * 5(-12...12) 5-limit lattice -- the numbers are far too small to be legible (in fact in zooming out so far the spreadsheet made most of them invisible!), but the pattern of grey shading can be seen in the upper left and lower right corners, showing that the error pattern for 4296edo is somewhat similar to that for 612edo, the previous winner for excellence in 5-limit approximation.


49152edo = 12 * 212

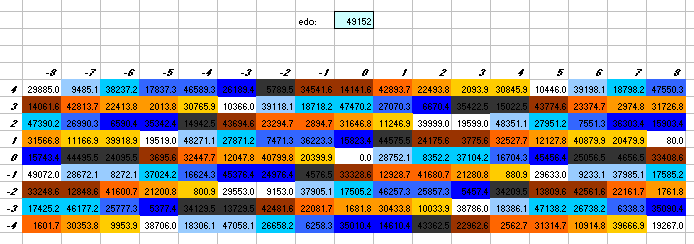

49152edo, which i find much easier to remember as (12 * 212)edo, is the tuning resolution for pitch-bend data for the popular computer-music program CakewalkTM, one degree of which i call a cawapu.


[from Joe Monzo, JustMusic: A New Harmony. Thanks to John Chalmers, Manuel Op de Coul, Margo Schulter, and especially Paul Erlich, for helpful criticism and additional info.]


..........................


Any tuning system which divides the octave (2/1) into n aliquot parts is termed an n-tone Equal Temperament. Mathematically, an Equal Temperament is a geometric series and each degree is a logarithm to the base 2n.

[Note from Monzo: the base is 2 only in 'octave'-equivalent equal-temperaments. It is possible to construct an equal temperament using any number as a base, as noted below. An example would be to divide the 'perfect 12th', which has the ratio 3:1, into equal 'steps' (as in the Bohlen-Pierce scale); this is a geometric series where each degree is a logarithm to the base 3n.]

Because of the physiology of the human auditory system, the successive intervals of Equal Temperaments sound perceptually equal over most of the audible range.

It is also possible to divide intervals other than the octave as in the recent work of Wendy Carlos (Carlos,1986), but musical examples are still rather uncommon.

[from John Chalmers, Divisions of the Tetrachord]


. . . . . . . . .
